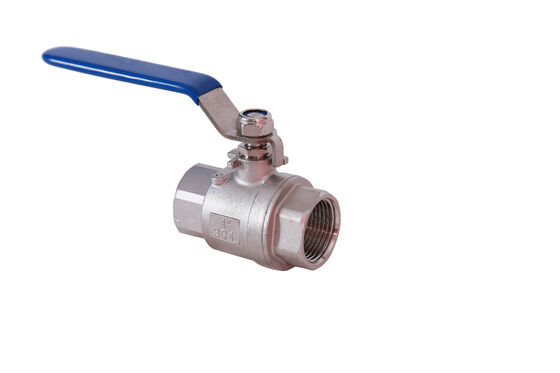

304 Stainless Steel Threaded Ball Valve with Full Port Design for Industrial Flow Control

  • 304 Stainless Steel Threaded Ball Valve with Full Port Design for Industrial Flow Control
Lieu d'origine Chine
Nom de marque YOUWEI

Contactez-moi pour des échantillons gratuits et des coupons.

Je ne sais pas.:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Matériel Moulage, laiton, acier inoxydable, fonte ductile, GGG40 Taille du port DN50-DN1200, Standard, 2"-24"
Pouvoir Manuel, à commande électrique, hydraulique, à commande par volant, GO Pression Moyenne pression, basse pression, PN10-16, PN1.0/PN1.6, 250PSI
Température des supports Température moyenne, température normale, basse température, -10 ~ 100 ℃ Médias Eau, pétrole, etc., gaz, etc.
Application Général, irrigation, distribution d'eau, industrie, système d'eau Structure Balle
Standard ou non standard Standard Nom du produit Vanne à vanne, vanne à vanne électrique en fonte avec tige non montante DN40-DN600, vanne à vanne à
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Taille DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 à 100
Connexion Fileté, BSP, extrémités de douille, filetage femelle Matériau du corps Fonte ductile, DI/CI, DI, fonte, laiton
couleur Bleu, demande du client, exigence du client, jaune, gris Moyen Eau, eau, pétrole, gaz
Taper Vanne à bille, ouverture normale, 2 voies, tige non montante/NRS Type de soupape Vanne à billes
Joint doublé de caoutchouc, métal, PTFE
Mettre en évidence

304 Stainless Steel Ball Valve

,

Threaded Ball Valve

,

Full Port Ball Valve
Laisser un message
Description de produit
304 Threaded Ball Valve
The 304 Threaded Ball Valve is a high-performance industrial valve designed for reliable on/off and flow control in a wide range of fluid handling applications. Constructed from corrosion-resistant 304 stainless steel, this valve is suitable for use with water, oil, gas, steam, and mild chemical media.
Product Overview
This threaded ball valve features screwed ends that allow for easy installation without welding, making it ideal for maintenance, retrofit, and modular piping systems.
Key Features
  • Material Excellence: Made from AISI 304 stainless steel, offering excellent corrosion resistance, durability, and hygiene for demanding environments.
  • Full Port Design: Provides minimal flow restriction, low pressure drop, and superior flow capacity.
  • Threaded Connections: NPT or BSPP threads ensure secure, leak-free installation and easy integration into existing pipelines.
  • Quick Operation: Quarter-turn (90°) handle allows for fast opening and closing, improving operational efficiency.
  • Robust Sealing: PTFE or reinforced PTFE seats ensure tight sealing, long service life, and compatibility with various media.
  • Compact & Lightweight: Easy to handle, install, and maintain, even in tight spaces.
  • Multi-Application Suitability: Suitable for industrial, commercial, HVAC, water treatment, and food processing systems.
Technical Specifications
Specification Details
Body Material 304 Stainless Steel (AISI 304 / CF8)
Seat Material PTFE, RPTFE, or optional PPL / metal seated versions
Connection Type Threaded (NPT, BSPT, BSPP available)
Size Range ¼" to 4" (DN8 to DN100)
Pressure Rating Class 150 / PN16 (higher ratings available upon request)
Temperature Range -20°C to 200°C (depending on seat material)
Operation Manual lever, gear-operated, or actuator-ready
Standards Compliance ISO, ANSI, DIN, JIS, or as customized
Applications
  • Industrial process lines (chemical, petrochemical, pharmaceutical)
  • Water supply and treatment systems
  • HVAC, refrigeration, and heating circuits
  • Food, beverage, and dairy processing
  • Compressed air and gas pipelines
  • Marine and shipbuilding applications
  • General plumbing and instrumentation systems
Installation & Maintenance
Ensure threads are clean and properly sealed with thread tape or sealant. Align valve orientation according to flow direction (if marked). Avoid over-tightening to prevent thread damage. Periodically check for leaks and operate the valve to maintain seat flexibility.
Benefits
Corrosion-Resistant: Ideal for humid, corrosive, and sanitary environments.
Easy to Install: No welding required, reducing installation time and cost.
Reliable Performance: Durable construction ensures long-term, leak-free service.
Versatile Use: Compatible with a wide range of media and industries.
